Msd Rpm Activated Switch Wiring Diagram. A Comprehensive Guide to Wiring an MSD RPM Activated Switch PN 8950 uctor Spark Plug Wire give-away! Registering your product will help if there is ever a warranty issue with your product and helps the MSD R&D team crea e new products that you ask for! Go to www IMPORTANT: Read the instructions before attempting the installation. Learn how to properly wire a MSD RPM activated switch to control various components in your vehicle

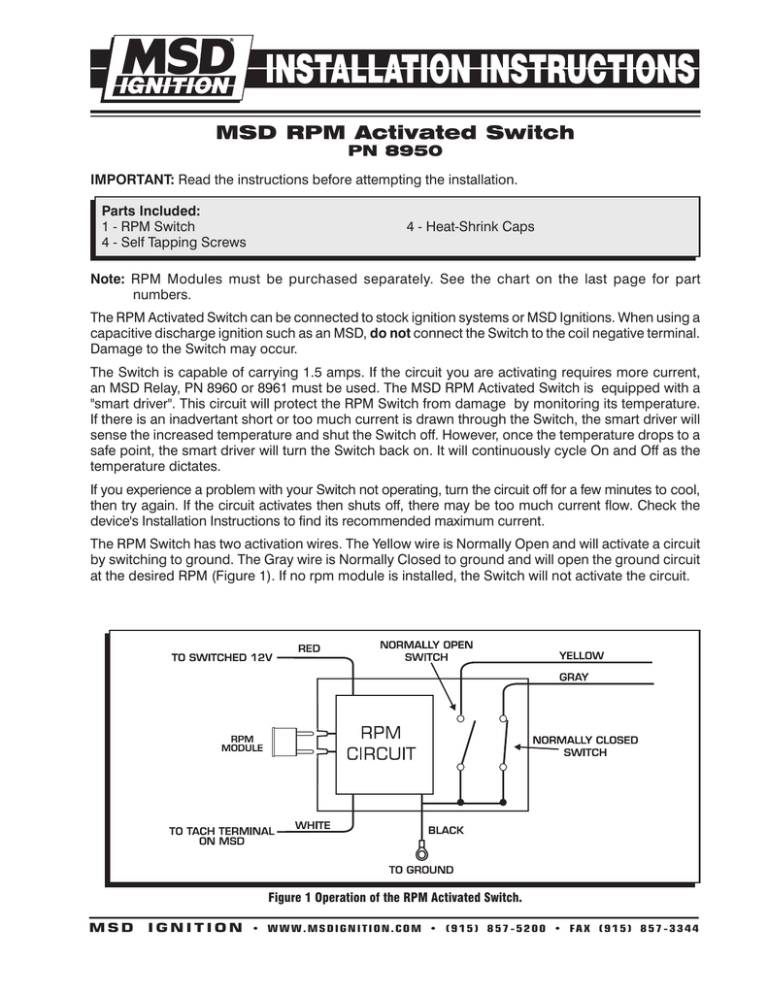

When using a capacitive discharge ignition such as an MSD, do not connect the Switch to the coil negative terminal. MSD RPM Activated Switch PN 8950 IMPORTANT: Read the instructions before attempting the installation

A Comprehensive Guide to Wiring an MSD RPM Activated Switch

The RPM Activated Switch can be connected to stock ignition systems or MSD Ignitions This article provides step-by-step instructions and tips for connecting the switch to your vehicle's ignition system, allowing for precise RPM-based control of other MSD components like shift lights, nitrous systems, and more. The RPM Activated Switch can be connected to stock ignition systems or MSD Ignitions

Msd Rpm Activated Switch Wiring. When using a capacitive discharge ignition such as an MSD, do not connect the Switch to the coil negative terminal The yellow wire 'SUPPLIES' a ground up to 1 1/2 amp and the Gray wire holds and 'REMOVES' a ground up to 1 1/2 amp

MSD 8950 RPM Activated Switch. Learn how to properly wire and install the MSD RPM Activated Switch 8950 with the help of a detailed wiring diagram MSD RPM Activated Switch PN 8950 IMPORTANT: Read the instructions before attempting the installation
